FINE (Flat Interface Nerve Electrode)

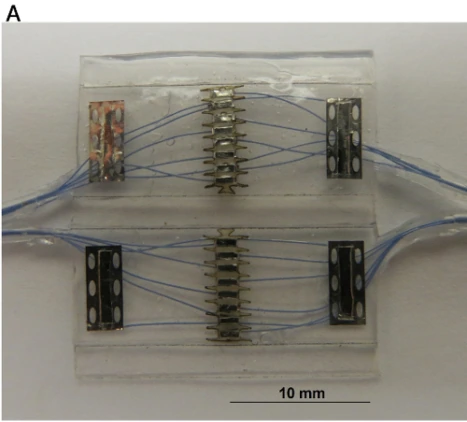

Fabricated 16-contact FINE in its open position, showing the tissue-facing contacts and reference strips. 10 mm scale retained.
2016 high-contact-density academic fabrication example; not the separate Ardiem human sensory cuff.
Scale: 10 mm scale bar retained.
Open, flat fabrication configuration; closed-cuff aperture must be obtained from the paper specifications rather than inferred from this open photograph.
Image credit & source
Dweiri et al., Journal of Visualized Experiments (2016), Fig. 3A · Dweiri 2016 · Fig. 3A · Copyright reserved; educational reference use requested by site owner.
Photographic panel mechanically cropped from the source; resized and encoded as WebP. Source annotations and scale bars retained; no generative changes.
FINE around the canine sciatic nerve, showing the longitudinally flexible cuff body; 10 mm scale retained.
2016 high-contact-density academic fabrication example; not the separate Ardiem human sensory cuff.
Scale: 10 mm source scale bar retained.
Surgical orientation photograph; tissue and cuff may be deformed by handling.
Image credit & source
Dweiri et al. (2016), Fig. 3B · Dweiri 2016 · Fig. 3B · Copyright reserved; educational reference use requested by site owner.
Photographic panel mechanically cropped from the source; resized and encoded as WebP. Source annotations and scale bars retained; no generative changes.

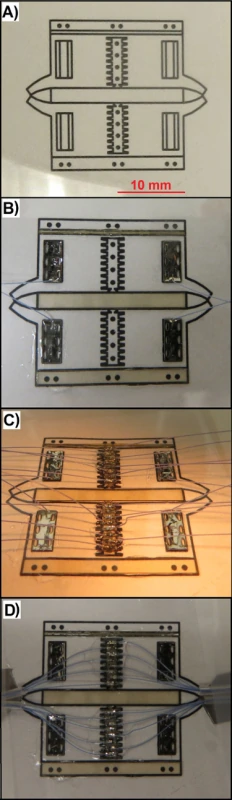

FINE fabrication sequence: tissue-facing contact layout and lead routing before final encapsulation.
2016 high-contact-density academic fabrication example; not the separate Ardiem human sensory cuff.
Scale: No calibrated scale bar in this process figure.
Intermediate fabrication views; not an additional clinical cuff version.
Image credit & source
Dweiri et al. (2016), Fig. 2 · Dweiri 2016 · Fig. 2 · Copyright reserved; educational reference use requested by site owner.
Complete source figure retained; resized and encoded as WebP. No generative changes.
- Code
- ?3R
- Reviewed
- 2026-02-06
- Interface
- pni
- Evidence stage
- human
Independent, source-linked catalog sheet. Not a manufacturer-issued datasheet, regulatory decision or instructions for clinical use. Human evidence does not establish approval. Source-specific restrictions, conflicts and missing specifications are retained below.
FINE (Flat Interface Nerve Electrode)
Every field follows the shared implant-device template. Values belong to a named configuration or study; not reported means the reviewed sources do not establish the value. Family-wide and deployment-specific evidence are kept separate.
Identity
| Field | Value and source scope |
|---|---|
| Device | FINE family; human sensory cuffs and 2016 high-contact-density fabrication kept distinct |
| Manufacturer | Tan 2015 human components: Ardiem Medical. Dweiri 2016 fabrication is an academic protocol, not the same manufactured cuff |
| Interface class | Extraneural flat-interface peripheral nerve cuff |
| Origin | Tyler and Durand design cited in Dweiri 2016 |
| First demonstrated | 2002 foundational selective-stimulation paper cited in Dweiri 2016; earliest prototype date not reported |
| First human implant | Tan 2015 reports first chronic human FINE study; earliest exact implantation date not established in this audit |
| Species studied | Human in Tan 2015; species of 2016 chronic fabrication measurement not pinned here |
| Regulatory status | Tan 2015 research under FDA IDE; not general market approval |
| Function | Selective stimulation and electroneurogram recording, configuration-specific |
| Target tissue | Peripheral nerve surface |
Geometry and architecture
| Field | Value and source scope |
|---|---|
| Interface type | Non-penetrating cuff with flat cross-section |
| Array layout | Tan 2015 eight-contact FINEs; Dweiri 2016 contact arrays framed with PEEK and paired outer references |
| Electrode count | Eight per FINE in Tan 2015; 2016 high-density design count configuration dependent, not inferred from images |
| Pitch | 2016 middle-contact spacing 0.51 ± 0.04 mm, n=70; not a clinical Tan 2015 pitch |
| Electrode lengths | Not applicable to shanks; axial cuff length configuration dependent |
| Shank width and thickness | 2016 PEEK contact frame 125 µm thick, not total cuff thickness. Tan 2015 lumen 10 x 1.0 or 10 x 1.5 mm, depending on nerve/subject |
| Tip and exposed site geometry | 2016 laser-cut strip width follows frame guide channel; numerical exposed active area not reported |
| Contact coating | Platinum/10% iridium strips in 2016 protocol; not automatically assigned to Tan 2015 clinical cuffs |
| Insulation | 2016 silicone cuff surrounding 125 µm PEEK contact frame; clinical cuff stack not established here |
| Insertion method | Surgical nerve exposure, placement around nerve without penetrating epineurium |
| Anchoring and fixation | 2016 protocol sutures two free edges together; one human ulnar FINE opened after surgery in Tan 2015 |
Electrode and channel physics
| Field | Value and source scope |
|---|---|
| Exposed site area | |
| Electrode material | Platinum/10% iridium contacts, Dweiri 2016; human clinical contact material not reported in audited Tan Methods |
| Impedance (with measurement frequency) | Dweiri 2016: 2.55 ± 0.25 kΩ at 7.5 months, measurement frequency not reported in audited abstract. Tan 2015 pairwise pulse-derived values about 2.66-3.12 kΩ, measured with 0.3 mA/50 µs pulses at 20/100 Hz; not one 1 kHz rating |
| Noise floor or SNR | 2016 protocol: chronic recording SNR 5.10 ± 0.81 dB at 7.5 months; not a device-wide noise floor |
| Recording modality | Peripheral electroneurogram in 2016 fabrication report; Tan 2015 concerns stimulation |
| Sampling rate | Configuration dependent; 2016 external preamplifier bandwidth 700 Hz-7 kHz and gain 2,000 do not establish sample rate |
| Stimulation capability | Selective sensory stimulation in Tan 2015; 2016 protocol supports recording/stimulation configurations |
| Charge injection limit | Not given as material limit; perceptual thresholds are not charge-injection limits |
| Reference and ground | 2016 protocol: four outer reference contacts and middle arrays, positioned symmetrically for interference rejection; clinical topology not equated |
Tissue interface and bioresponse
| Field | Value and source scope |
|---|---|
| Target tissue | Nerve surface, outside epineurium |
| Insertion trauma and BBB disruption | BBB: not applicable; extraneural cuff placement. Quantitative injury not reported in audited human study |
| Vascular disruption risk | Compression/fit is a design concern; no quantitative human vascular injury rate |
| Micromotion sensitivity | 2016 design balances transverse rigidity and longitudinal flexibility; quantitative motion sensitivity not reported |
| Gliosis and encapsulation | CNS gliosis not applicable; Tan 2015 discusses encapsulation as possible mechanism, not quantitative human histology |
| Neuron loss near sites | |
| Foreign-body response mitigation | 2016 design expands cross-sectional area by 25% at 67 mmHg bench pressure; not an approved safe nerve-compression limit |
| Typical failure modes | Tan 2015: ulnar FINE opened in subject 2, losing intimate nerve contact; other contacts remained available |
System architecture
| Field | Value and source scope |
|---|---|
| Onboard electronics | None in cuff; external acquisition/stimulation electronics in audited configurations |
| Data path | Tan 2015 cuff leads through spring-sleeve connectors to percutaneous leads and external UECU |
| Telemetry bandwidth | Not applicable to passive wired cuff |
| Sampling rate | Configuration dependent; external acquisition |
| Power | External stimulation/acquisition system in audited configurations |
| Thermal management | |
| Packaging and hermeticity | 2016 silicone/PEEK passive cuff; Tan 2015 uses percutaneous leads, not a fully sealed implant |
| MRI compatibility | |
| Surgical complexity | Peripheral nerve exposure with careful lumen selection and closure |
| Output connectors | Tan 2015 spring-sleeve to open-helix percutaneous leads; 2016 connector model not reported |
Performance envelope
| Field | Value and source scope |
|---|---|
| Acute yield | Tan 2015 subject 2: initially 10/16 available contacts evoked sensation; excludes opened ulnar cuff. Not a family-wide yield |
| Chronic yield | Tan 2015 subject 2: 16/16 available contacts by week 27. Subject 1 total 19/20 includes four spiral contacts, so not assigned wholly to FINE |
| Stability over time | Tan 2015 threshold/impedance/percept evidence over 1-2 years in mixed cuff study; configurations distinguished |
| Longevity | 2016 recording cuff observed at 7.5 months; human sensory study 1-2 years, not maximum lifetime |
| Revision and explant experience | Opened human ulnar cuff documented; revision/explant details not reported |
| Adverse events | Tan 2015: no infection of percutaneous leads or implanted components in study period; one FINE opened |
| Notable demonstrations | Characteristic sensory percept fields in human amputees; 2016 reports chronic neural recording |
Clinical and preclinical evidence
| Field | Value and source scope |
|---|---|
| Human subjects | Tan 2015: two amputees with FINEs; subject 1 also has a spiral radial cuff. Do not attribute mixed-system totals to FINE alone |
| Preclinical cohort | 2016 chronic recording example; cohort size/species not reported in audited abstract |
| Follow-up duration | Tan 2015: 1-2 years; 2016 chronic recording example: 7.5 months |
| Indications | Experimental sensory restoration after upper-limb loss and peripheral nerve recording |
| Trials and registries | Tan 2015 FDA IDE; registry identifier not reported |
| Primary outcomes | Percept selectivity, thresholds, pulse-derived impedance, chronic recording SNR |
| Key limitations | FINE is a family with different builds; tiny human cohort, mixed cuff types, opened cuff and nonuniform measurement methods |
Engineering tradeoffs
| Field | Value and source scope |
|---|---|
| Strengths | Multiple surface contacts with human selective sensory evidence; high-density fabrication and chronic recording reported separately |
| Limitations | Fit and closure can fail; extraneural population recording is not single-axon access |
| Scaling constraints | Transverse shaping versus longitudinal flexibility, lead count and fabrication precision; no universal scaling maximum |
References
- Dweiri et al. 2016. Fabrication of High Contact-Density, Flat-Interface Nerve Electrodes for Recording and Stimulation Applications. Protocol, not a universal clinical specification.
- Tan et al. 2015. Stability and selectivity of a chronic, multi-contact cuff electrode for sensory stimulation in human amputees. Human FINE and spiral configurations separated.
Models and reference visualizations
FINE · 2013 eight-contact lumen reference
Electrode-bearing lumen; simplified silicone shell · dimensions in millimeters
Loading 3D viewer…
Documented measurements
- 10 × 1.5 × 7 mm selected lumen
- Eight 0.5 mm apertures, approximately 2 mm pitch and opposing half-pitch stagger
Reconstructed or assumed
- 0.3 mm wall; photo-informed rounded lumen and exterior
- Centered transverse row origins and axial midpoint
Not modeled
- Contact recess, snap closure, strain relief and leads
- Nerve reshaping and electrical response
Model fidelity. Selected 10 × 1.5 × 7 mm luminal variant from Schiefer et al. (2013), with four inward-facing 0.5 mm apertures on each opposing wall. Approximately 2 mm center spacing and half-pitch staggering are reported. Absolute X offsets are centered for display and axial centers are placed at the cuff midpoint; those origins were not specified. The 0.3 mm wall thickness and rounded corners are display assumptions, not measured silicone geometry. The 2013 source photograph shows rounded lumen ends and a soft outer silhouette: the displayed 0.75 mm inner radius and 0.3 mm outer radius preserve the documented 10 × 1.5 mm lumen envelope and contact locations. Pale silicone and silver Pt/Ir reflect the documented materials; optical finish is illustrative. Recess depth, closure, lead exits and strain relief are omitted. Contact area describes ideal aperture area, not electrochemical surface area. Not the 2016 high-density PEEK-frame FINE. No nerve reshaping, pressure or stimulation is calculated.
Color, transparency and surface finish approximate the references. Use Highlight contacts to inspect electrode locations.
Contact meshes use a 10 nm display separation to prevent surface flicker in 3D exports. Geometry JSON retains the nominal measured surfaces.
