Neuralink N1 Implant

N1 combines independently placed flexible electrode threads with a skull-mounted enclosure containing electronics, a rechargeable battery and wireless telemetry. The R1 robot inserts the threads; an external application decodes the recorded activity into computer actions. [1]

Which N1 is modeled?

This is the 64-thread, 16-sites-per-thread configuration described in 2024, totaling 1,024 physical sites. [1, 2] The dated name matters: UCLH’s July 2025 GB-PRIME description instead specifies 128 threads with 8 electrodes each. [3] Both total 1,024 sites, but they have different physical layouts. The newer description is linked for comparison and is not silently folded into the 2024 model.

Geometry and evidence

ParameterEvidence for the selected revisionTreatment in the model
Threads / electrodes64 / 1,024 [1]64 separately drawn ribbons, 16 sites each
Along-thread site pitch200 µm, reported by DJ Seo in 2024 [2]200 µm center to center
Thread width16–84 µm in the same interview [2]Linear taper between those limits; progression is illustrative
Thread thicknessTwo 2 µm polymer layers and a 0.4 µm metal stack [2]4.4 µm total derived from the described stack
EnclosureApproximately quarter-sized and 9 mm thick [2]Nominal 24 mm diameter × 9 mm thickness
Contact shape and exposed area12 × 20 µm visual markers; exposed area is exported as unknown
Thread placementIndependently placed by the surgical robot [1]Unfurled display fan, not a cortical insertion map

Using the 3D reference

The model shows the enclosure envelope and all 64 flexible ribbons in a schematic unfurled pose. Thread detail shows a terminal recording section; Contact detail reveals the tiny site markers. Both change the camera only. Gold is a visual highlight, not a claim about the exposed contact’s actual appearance.

Fan length, thread-to-thread spacing, bends, taper progression and enclosure trim are reconstruction choices. Internal chips, the charging coil, surgical insertion loops and individual metal traces are omitted. ClinicalTrials.gov describes the N1 as a skull-mounted, wireless, rechargeable implant [4], so a coil exists, but no cited source gives its size or position and none is drawn. No patient-specific trajectory or cortical insertion depth is encoded in this display pose.

JSON exports use millimeters and identify both thread and site index. Each physical site has a unique geometric ID; acquisition channel assignments and contact areas stay null. GLB uses meters and includes the full assembly even when viewing contacts only. Transforming the display fan into an implanted configuration requires independently specified trajectories and a validated electrical model.

Interface and operation

The engineering interview describes a polyimide-insulated thin-film metal stack and iridium-oxide recording sites, with electrodes distributed along the thread rather than only at its endpoint. It also discusses stimulation capability; that does not establish clinical efficacy or stimulation limits for this geometric model. [2]

Inductive charging and wireless data allow the implant to operate without a percutaneous connector. [1] The relevant human programs are investigational studies. UCLH describes the GB-PRIME study as evaluating safety and functionality, with an initial study period and longer follow-up. [3]

Identity

FieldValue and source scope
DeviceN1 implant, flexible-thread intracortical BCI
ManufacturerNeuralink
Interface classIntracortical, penetrating flexible threads
OriginNeuralink; first human participant reported in company updates from 2024 [1]
First demonstrated2024 company update for the 64-thread, 16-site description [1, 2]; the July 2025 UCLH description gives 128 threads of 8 electrodes [3]
First human implantFirst PRIME participant reported in company updates beginning 2024 [1]
Species studiedHuman (investigational) and preclinical animals; preclinical detail not reported here
Regulatory statusInvestigational: PRIME (NCT06429735) [4] and GB-PRIME [3]; not commercially approved
FunctionRecording; stimulation capability discussed in the engineering interview [2]
Target tissueMotor cortex in the reported human program

Geometry and architecture

FieldValue and source scope
Interface typePenetrating flexible polymer threads with a skull-mounted enclosure
Array layout64 threads x 16 sites (2024 description) [1, 2]; the 128 x 8 variant is documented separately [3]
Electrode count1,024 physical sites in both descriptions [1, 3]; simultaneous channel count not reported
Pitch200 µm along the thread, per the 2024 interview [2]
Electrode lengthsThread reach and insertion depth are patient-specific and not published
Shank width and thickness16-84 µm width; thickness about 4.4 µm derived from two 2 µm polymer layers and a 0.4 µm metal stack [2]
Tip and exposed site geometryContact shape and exposed area not reported; model markers are illustrative
Contact coatingIridium oxide recording sites on a thin-film metal stack [2]
InsulationPolyimide over a thin-film metal stack [2]
Insertion methodR1 surgical robot with a needle that grasps, inserts and releases threads [1]; company page describes five cameras and an OCT system
Anchoring and fixationSkull-mounted enclosure [1, 4]; thread anchoring in tissue not reported

Electrode and channel physics

FieldValue and source scope
Exposed site areaExported as unknown
Electrode materialIridium-oxide recording sites on a thin-film metal stack [2]
Impedance (with measurement frequency)
Noise floor or SNR
Recording modalityRecording of neural activity near neurons to detect action potentials per the company page; bands not reported
Sampling rate
Stimulation capabilityDiscussed publicly [2]; parameters and limits not reported
Charge injection limit
Reference and ground

Tissue interface and bioresponse

FieldValue and source scope
Target tissueCerebral cortex
Insertion trauma and BBB disruptionThreads are placed to avoid vasculature per company descriptions [1]; quantitative trauma data not reported
Vascular disruption riskThreads placed to avoid vasculature per company descriptions [1]; quantitative data not reported
Micromotion sensitivityFlexible threads are designed to move with tissue [1]; independent quantitative data not reported
Gliosis and encapsulation
Neuron loss near sites
Foreign-body response mitigationThread flexibility and small cross-section are the design approach; measured outcomes not reported
Typical failure modesThread retraction after implantation was reported for the first participant in company updates [1]

System architecture

FieldValue and source scope
Onboard electronicsEnclosure contains electronics for recording, processing and wireless telemetry; custom low-power chips per the company page [1]
Data pathWireless to the Neuralink Application, which decodes the data stream into actions; no percutaneous connector [1]
Telemetry bandwidth
Sampling rate
PowerSmall rechargeable battery charged wirelessly with an inductive charger [1, 4]
Thermal management
Packaging and hermeticityHermetically sealed biocompatible enclosure per the company page; hermeticity specifications not reported
MRI compatibility
Surgical complexityR1 robot insertion with skull-mounted enclosure placement [1]
Output connectorsNo percutaneous connector [1]; wireless link details not reported

Performance envelope

FieldValue and source scope
Acute yield
Chronic yieldCompany reports cursor and device control in study participants [1]; independent datasets not reported
Stability over timeThread retraction affected early recordings in the first participant [1]; long-term stability not reported
LongevityBattery and packaging lifetime not publicly specified
Revision and explant experience
Adverse eventsNo independently audited rates
Notable demonstrationsCompany-reported cursor control and computer use by study participants [1]

Clinical and preclinical evidence

FieldValue and source scope
Human subjectsPRIME and GB-PRIME investigational studies; company-reported participant counts change over time and are not pinned here
Preclinical cohortPreclinical cohort details not reported here
Follow-up durationInitial study period with longer follow-up per UCLH [3]
IndicationsSevere motor impairment and paralysis
Trials and registriesNCT06429735 (PRIME) [4]; GB-PRIME [3]
Primary outcomesSafety and functionality [3, 4]
Key limitationsEvidence is largely company statements and interviews; peer-reviewed human data remain sparse

Engineering tradeoffs

FieldValue and source scope
StrengthsHigh site count, fully implanted wireless operation, flexible threads, robotic insertion, no percutaneous connector
LimitationsSparse peer-reviewed data, reported thread retraction, dependence on a novel surgical robot, unpublished longevity
Scaling constraintsSurgical throughput, hermetic packaging, telemetry bandwidth, power and heat, chronic tissue response

References

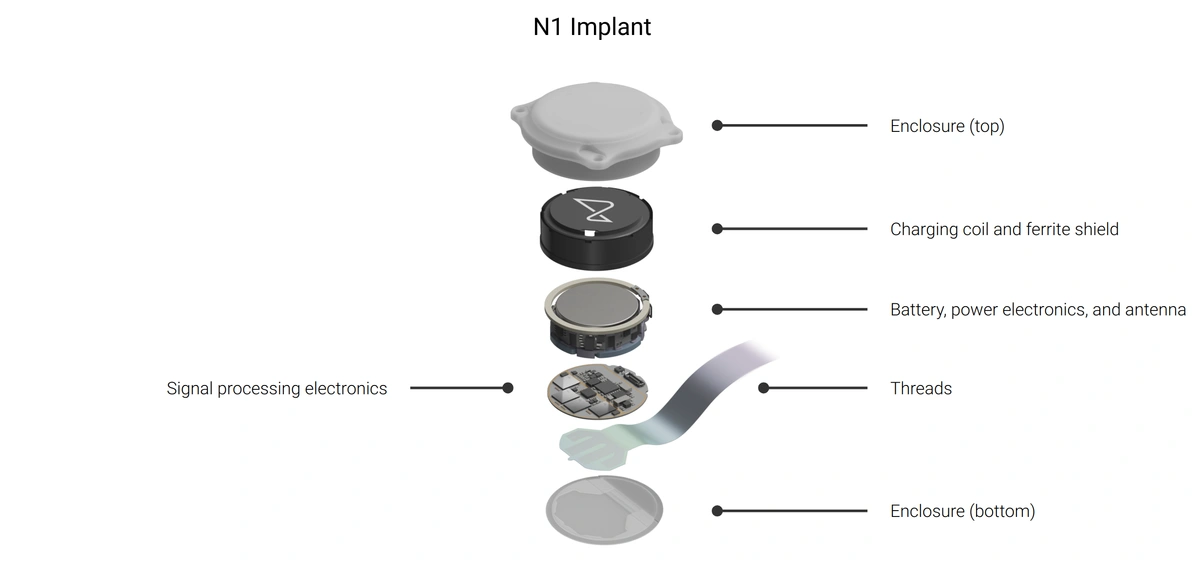

  1. Neuralink — PRIME Study Progress Update; April 12, 2024. Includes the manufacturer’s exploded N1 reference image.
  2. DJ Seo — Neuralink engineering interview, Lex Fridman podcast #438 (2024). See 02:03:33 for electrode layout, 02:07:03 for enclosure, 02:08:58 for width and 02:12:48 for the layer stack. These are public engineering descriptions, not released fabrication drawings.
  3. UCLH — GB-PRIME study description; July 31, 2025. Documents a separate 128 × 8 arrangement and investigational study status.
  4. ClinicalTrials.gov NCT06429735 — PRIME study. Describes the N1 Implant as skull-mounted, wireless and rechargeable.

The company technology page (neuralink.com/technology) describes a hermetically sealed biocompatible enclosure, a battery charged wirelessly by an inductive charger, custom low-power chips, and a surgical robot with five camera systems, an optical coherence tomography system and a needle that grasps, inserts and releases threads. Third-party device databases give figures such as a coin-sized 23 x 18 x 2 mm body and 200 Mbps raw data; those are not confirmed by Neuralink in the reviewed sources and are not used here.

Models and reference visualizations
3D GEOMETRY · REFERENCE MODEL

Neuralink N1 · 64 × 16 · 2024 reference

Electrode-bearing structure · dimensions in millimeters

Loading 3D viewer…

Physical sites1,024 · 64 threads × 16 sites
Along-thread pitch200 µm — 2024 engineering interview
Thread width / thickness16–84 µm / 4.4 µm stack described in interview
EnclosureQuarter-sized, about 9 mm thick; modeled at 24 × 9 mm
Display poseUnfurled fan; illustrative routing and thread spacing
Contact shape / exposed area12 × 20 µm visual markers; actual area unknown
Other described configuration128 threads × 8 sites (UCLH GB-PRIME); not modeled here
PowerSkull-mounted, wireless, rechargeable (ClinicalTrials.gov); coil geometry not published in the sources used
